Inconsistent Crease Lines

You get this error when two panels are connected by multiple crease lines that have different folding angles or animation parameters.

Here’s an example:

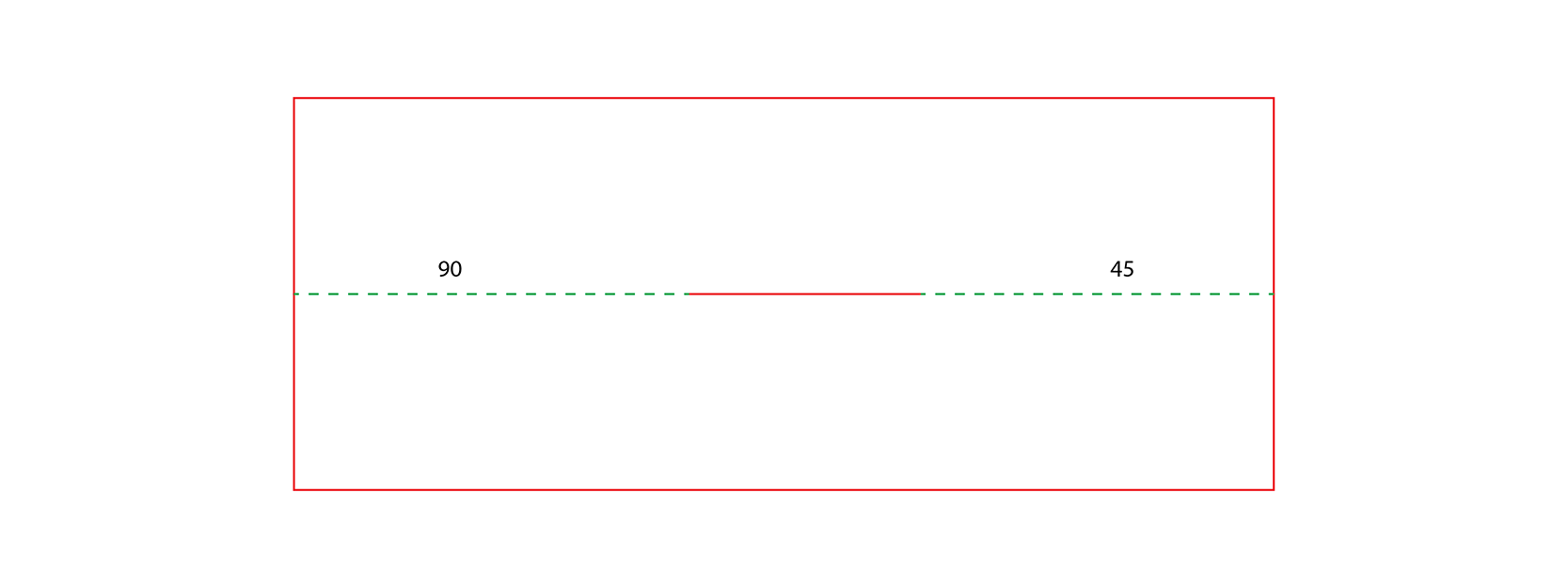

Two crease lines with different angles between the same panels

The panels above are connected by two crease lines. The left has 90º folding angle, while the right one has folding angle 45º. As there is no consistency between the crease lines, Origami reports an error.

Origami still folds such shape using the angle from one of the crease lines. Even if the shape is folded properly, it is recommended to fix the error.

Both folding angle and animation parameters are checked, so if the angles are the same, but the animations are different, you will get the same error.

What to do?

Check all the highlighted crease lines to make sure all the angles and animations are the same. Fix the odd ones.
